Latest New 2025 Model SMART INVTR SS V3

Higher Output 18COP – High Efficiency Low running cost - (1kw Power Makes 18 Kw of warm water, oversized heat exchanger and condenser)

Ultra quiet 37 to 40 db - Asymmetrical Cowling SWIRLFLOW DC FAN (Patented Front Fan discharge and dual side air intake)

25 year factory backed warranty

Stainless Steel Chassis for rugged Australian environment

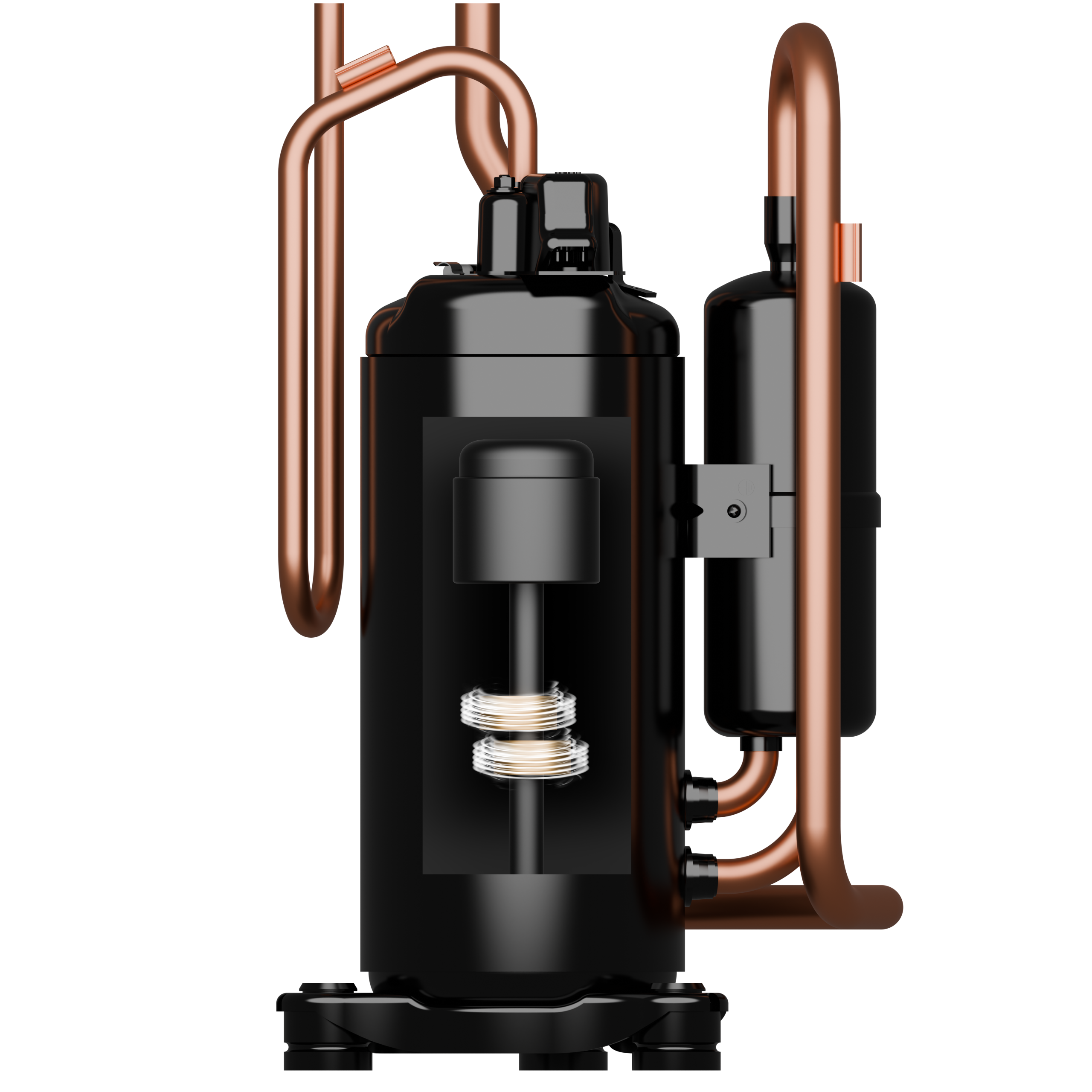

Mitsubishi twin rotary compressor with 5 layer sound barrier jacket

AI CORE INVTR Management Systems A.I.M.S - optimises operation 37 Function 7 Modes

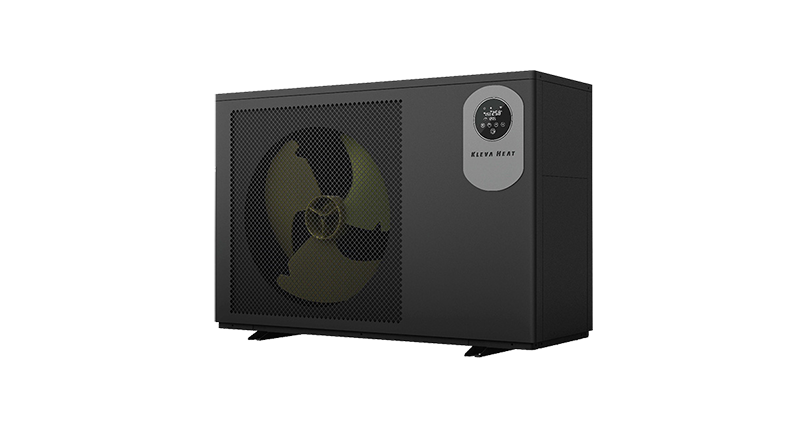

SMART INVTR SS V3

Key Features & Benefits:

Upgraded COP18 Higher Efficiency 4th Generation Inverter HeatPump

  • Generates 18 kW of heat from 1 kW of electricity
  • Faster heating and lowest operating cost $.
  • Powerful Swirlflow DC Fan whisper quiet
  • Larger Condenser
  • Money $ saving operation - faster heating 7 modes

Powerful FRONT discharge SILENT Swirl Flow Front AXIAL FAN

  • Silent operation due to DC Fan motor brushless
  • Asymmetrical AXIAL Fan Swirl blade geometry.
  • Strong airflow minimal turbulence, reduced noise
  • Large rear air intake

AI Core Inverter Logic Technology Optimises Efficiency 120% Boost

  • Proprietary A.I.M.S. AI (Advanced Interactive Management System) AI enabled real time performance management software optimises the operation of the twin rotary Mitsubishi compressor, DC fan Motor, Electronic Expansion valve and ambient environment. lowest power consumption.

IDEALFLOW unique twisted TITAMIUM HEAT EXCHANGER

  • 30% higher capacity extra coils design with greater thread coil teeth exposure larger surface area in heat exchanger faster heating, more titanium coils.

Ultra quiet 37 to 40 db - Asymmetrical Cowling SWIRLFLOW DC FAN

  • Patented Front Fan discharge and dual side air intake
  • Integrated laser cut fan cover within front housing
  • Flow direction swirl flange on inner side of front panel
  • Powerful front swirl airflow and rear intake – quietest front fan design
  • 5-layer sound cancelling jacket fitted around compressor
  • From 37Db to 40Db at 1 Metre
  • Most efficient, front fan heating system available
    - Frictionless Brushless fan Motors also whisper quiet

AI CORE INVTR Smart Control Technology

  • AI.M.S. (AI Management System), based inverter logic with 37 active functions - 1. SILENT 2. SMART 3. BOOST Modes Rapid defrost and more
  • Mitsubishi twin rotary compressor with 5 layer sound barrier
  • Wi-Fi control via mobile app 37 Functions
  • External connect from October 2025, 2m power cable factory fitted
  • Solar PV connection options
  • R32 refrigerant – eco-friendly
  • 4 Way EEV Electronic Expansion Valve
  • Optimised compressor speed, heat exchange expansion valve,fan speed, ambient temperature balancing

Premium Build Quality and Long Factory Warranties

  • Stainless steel chassis & long life anti corrosive casing
  • Commercial Grade Axial Asymmetrical fan
  • Integrated housing fan cover
  • Internal cowling directs swirl airflow
  • 30% more Twisted Titanium greater surface area coil for rapid heating
  • Mitsubishi twin rotary compressor with factory fitted 5 layer sound barrier jacket
  • Designed for durability & harsh environments
  • Oversized condenser/radiator (faster/more effective heat sync)
  • 25yr + 7yr + 2yr Factory Backed Warranty

Wi-Fi Klevaheat Heat Pump control via mobile app, easy to use from anywhere in the world

Advanced Heating Performance

  • Operational stability even in extreme cold – heats down to -20°C system will heat water even in -20C ambient temperature.
  • Triple auto-defrost system for rapid recovery
  • Fast heating with oversized twisted titanium KLEVAHEAT heat exchanger
  • Multi-blade industrial-duty fan for powerful output
  • High Pressure R32 refrigerant – eco-friendly 10% higher pressure
  • AI CORE Controller A.I.M.S
  • 7 Mode controller Boost 120%, Smart 100% Silent 60%

Environmentally safe R32 Refrigerant. ( Higher Pressure more efficient)

Solar Connectivity PV options

Smart Control Technology

Wi-Fi control via mobile app, easy to use

Solar Connectivity PV options

AI.M.S. EXCEED – AI-core inverter logic with 37 active functions

Noise Cancelling Mitsubishi twin rotary compressor & fan

COP22 Efficiency – Highest in Class 1Kw Power = 22 Kw Hot Water

R32 refrigerant – environmentally-friendly produces 10% higher pressure saves money

Specifications

Technical Range:
Single Phase Units: 7 kW to 33 kW
Three Phase Units: Up to 41 kW

Model No.: KH CFVX SSD V5+ 70 90 110 130 150
Refrigerant / R32
Power Supply / 220-240V~/50Hz
Performance Condition: Air Temperature 27°C, Inlet Water Temperature 26°C, Humidity 80%
Heating Capacity kW 9.85 12.04 13.8 16.05 19.1
COP W/W 21.90~7.35 22.08~7.43 22.33~7.42 22.35~7.47 22.10~7.37
Performance Condition: Air Temperature 15°C, Inlet Water Temperature 26°C, Humidity 70%
Heating Capacity kW 7.55 8.75 9.85 11.72 13.88
COP W/W 8.81~5.51 9.17~5.61 9.15~5.41 8.77~5.66 9.03~5.62
Operating Air Temperature °C -20~43
Rated Power Input at 15°C kW 0.21~1.37 0.23~1.56 0.26~1.82 0.31~2.07 0.37~2.47
Compressor / Mitsubishi Twin Rotary with 5 layer Sound Cancelling Jacket
Sound Level (1m) dB(A) 33.8~42.0 34.9~42.2 35.9~43.5 36.7~45.0 36.8~45.4
Sound Level (10m) dB(A) 13.8~22.0 14.9~22.2 15.9~23.5 16.7~25.0 16.8~25.4
Max. Current A 9.5 10.5 12.5 14 16.5
Advised Water Flow m3/h 2~4 3~5 4~6 5~7 6~8
Advised Water Flow L/min 30~70 50~80 70~100 80~110 100~130
Water Pressure Drop kPa 13 15 16 18 20
Water Connection mm 40mm High Pressure
Model No.: KH CFVX SSD V5+ 220 260 290 320 400P3
Refrigerant / R32
Power Supply / 220-240V~/50Hz
Performance Condition: Air Temperature 27°C, Inlet Water Temperature 26°C, Humidity 80%
Heating Capacity kW 22.09 26.03 29.12 32.21 40.61
COP W/W 22.14~7.24 22.04~7.44 21.70~7.37 22.09~7.25 22.24~7.20
Performance Condition: Air Temperature 15°C, Inlet Water Temperature 26°C, Humidity 70%
Heating Capacity kW 15.05 17.90 18.95 22.51 29.01
COP W/W 8.78~5.64 8.91~5.61 8.88~5.66 8.70~5.59 8.38~5.39
Operating Air Temperature °C -20~43
Rated Power Input at 15°C kW 0.41~2.67 0.45~3.19 0.50~3.35 0.57~4.03 0.73~5.38
Compressor / Mitsubishi Twin Rotary with 5 layer Sound Cancelling Jacket
Sound Level (1m) dB(A) 38.1~47.1 38.9~47.8 39.4~48.1 39.7~48.6 40.7~49.7
Sound Level (10m) dB(A) 18.1~27.1 18.9~27.8 19.4~28.1 19.7~28.6 20.7~29.7
Max. Current A 18.5 20.5 25.0 28.0 12.5
Advised Water Flow m3/h 7~9 8~11 9~12 10~13 12~17
Advised Water Flow L/min 110~150 130~180 150~200 160~210 200~280
Water Pressure Drop kPa 35 35 38 40 43
Water Connection mm 40mm High Pressure

Explore More Products

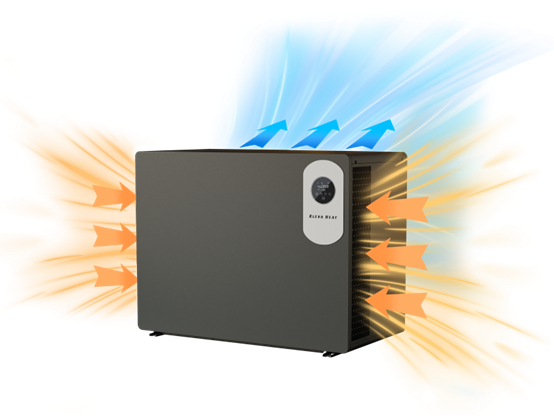

SILENT INVTRSS v3+

Latest New 2025 Model SILENT INVTRSS v3+ Higher Output 18COP & SILENT OPERATING 37 db to 40 db

TURBO

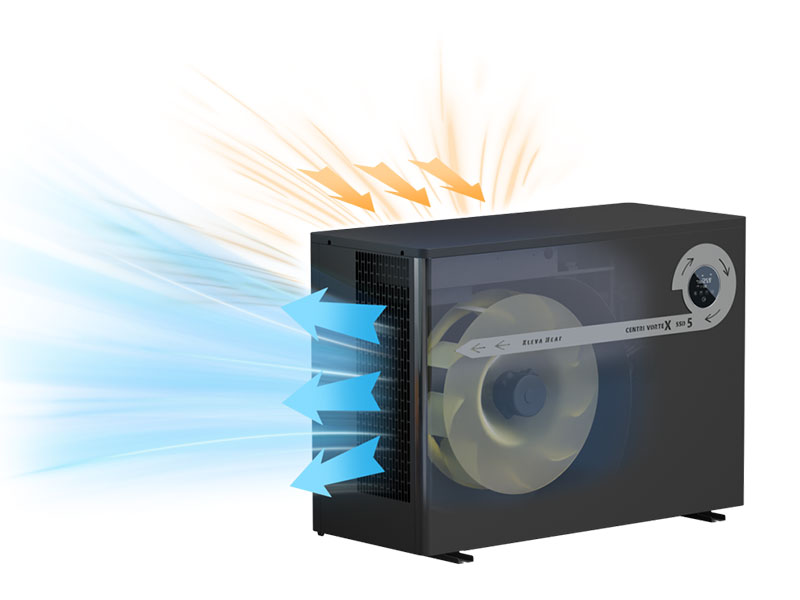

KH CFVX SSD V5+
